ODM/OEM L Shaped And Corner Sit Stand Desk Frame (90°/120°/180)

INQUIRE NOW

Document Downloads

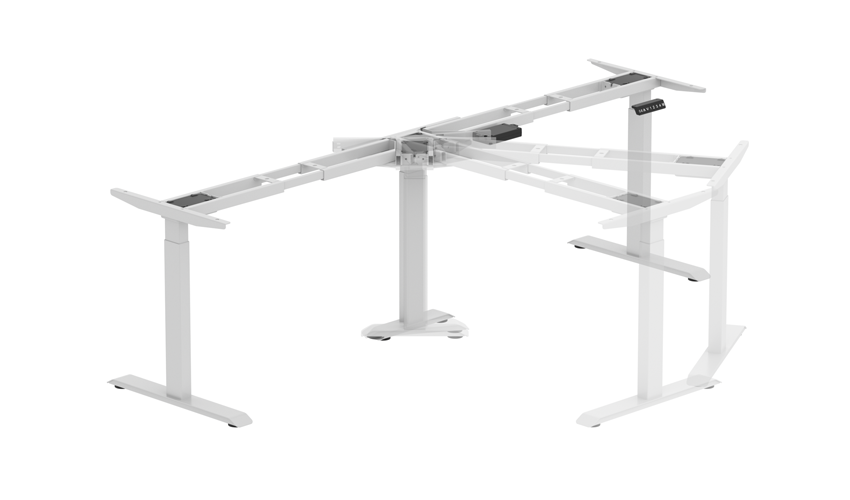

AOKE Three-Motor L Shaped Adjustable Desk Frame AK3YJYT-TYZB2 (90°/120°/180°)
AK3YJYT-TYZB2 is a three-motor l shaped adjustable desk frame. The lifting speed is 32mm/s.
The stroke is 71-117cm, which can meet the use of most heights.
This electric sit stand desk frame is convenient for users to disassemble and assemble, and can effectively save users’ installation time in the early stage.
It has strong stability, can support a lot of weight, and Excellent anti-slip that can prevent users from sliding and deviating during use.

General Features

    • Column Tube Shape：Rectangle
    • Height Range：690-1150mm
    • Digital Display Height：71-117cm
    • Frame Size：Front 1085-1680mm / Side 1085-1680mm
    • Feet Length：700mm
    • Bracket：600mm
    • Max Loading：150kg
    • Speed：32mm/s
    • Input Voltage：110v-240v
    • Sound Level：50dB
