AOKE Three-Motors Titable Standing Desk AK2QX-ZF2

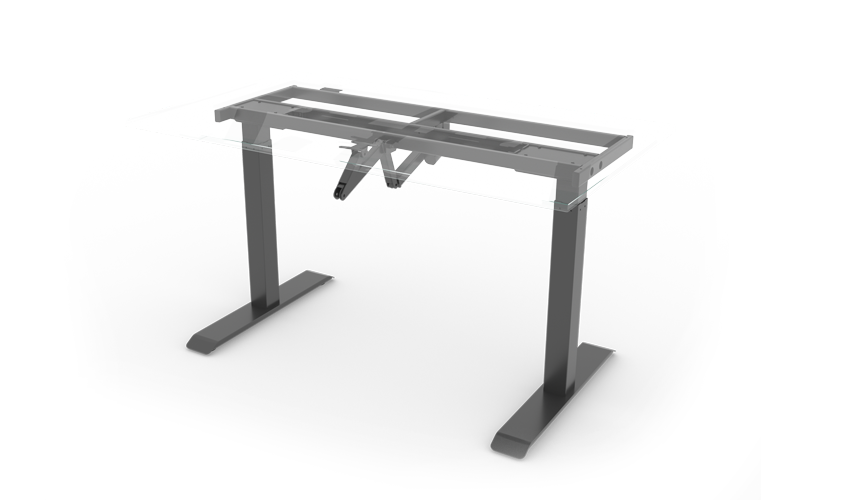

It is a three-motors titable standing desk frame. The stroke is 71-117cm, which can meet the use of most heights.

general features

    • Column Tube Shape:Square
    • Height Range:690-1150mm
    • Digital Display Height:71-117cm
    • Frame Size:1224mm
    • Feet Length:700mm
    • Bracket:410mm
    • Max Loading:120kg
    • Speed:32mm/s
    • Tilt Angle :0-40°
    • Max Load when tilt :25kg
    • Time:10s
    • Net Weight:24.6kg
    • Gross Weight:33.5kg
    • Package Dimension:1280*465*230mm
    • Input Voltage:110v-240v
    • Sound Level:50dB
