Aoke Adjustable Tilt Desk  AK02QX-ZF2

The desk can tilt up to 40 degrees just 10 seconds,offering quick and easy adjustments.
Equipped with the TA16 push rod and TC16 control box for smooth and efficient adjustments.
The desk can handle a maximum load of 25 kg when tilted, providing ample support for your work essentials.

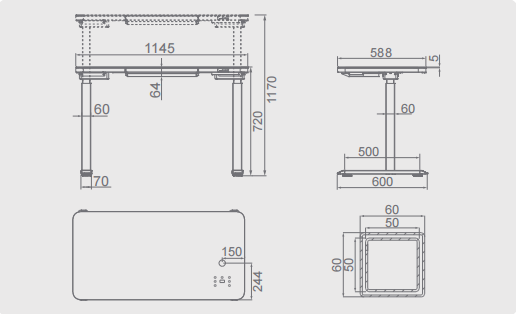

    • Height Range:690-1170mm
    • Frame Size:1224*410mm
    • Feet Length:700mm
    • Control Box :TC16
    • Thepush rod :TA16
    • Maximum Tilt Angle:0-40 degrees
    • Tilting Time: 10 seconds
    • Maximum Load Capacity (Tilted): 25 kg
    • Hand Controller:TDH6
    • Rated Loading:120kg
    • Speed:32mm/s
    • Package Dimension:1280*465*230mm
